| Available Material coaxial cable, coaxial wire |
| Wire Range Ø4.8mm-Ø35mm |
| Max. Stripping Layers 9 layers |
| Unit cutting depth 0.01mm |
| Stripping Length 0.1-~95mm |
| Display Way Touch screen |
| Driving Mode Motor and ball screw driving |
| Stripping Method Rotating blade |
| Blade 2pcs, Material Imports Switzerland tungsten steel |
| Locating plate 2pcs, Material Imported high-speed steel |
| Wire Trapper Self-aligning, Motor driving, Clamping force is controled by program |
| Productivity 500~700pcs/hour(according to wire length and wire material |
| Openning way Manual / Sensor/Foot switch |
| Power Supply 220V/50Hz ,380W |
| Air source 0.2-0.4MPa |
| Weight 19kg |
| Dimension 200mm*720mm*400mm； |
| Operating Enviroment 0-50℃,moderate dryness,vibrationless workbench |

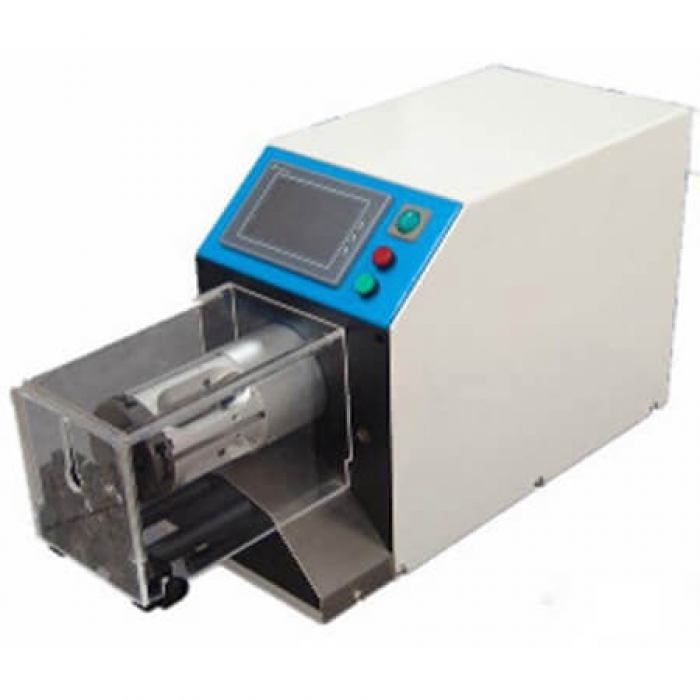

coaxial cable stripper TZB-32
Features

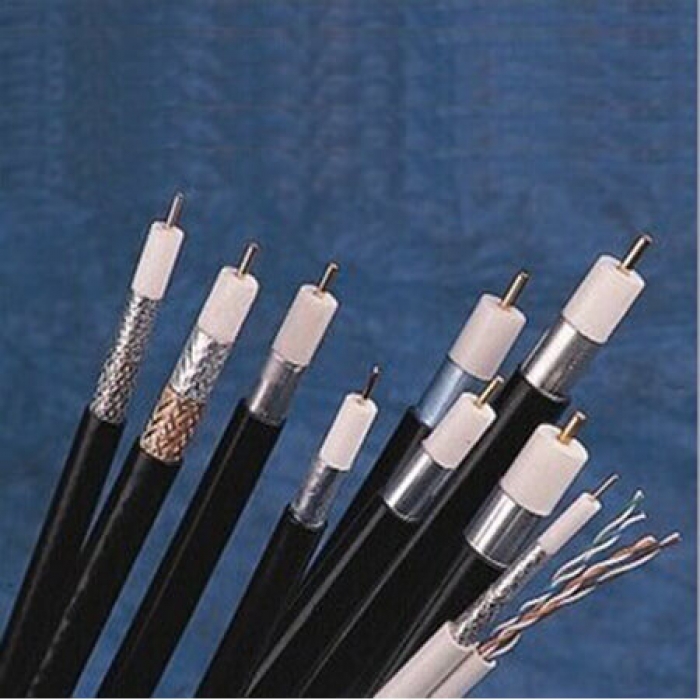

Fit for coaxial cable, triaxial cables, Multi-conductors wire, and single-conductor wire stripping.
Touch man-machine graphics operation, easy and convenient.
Special four blades makes machine could strip extremely thin wire, rough, irregular insulation.
specifications:
Available Material coaxial cable, coaxial wire
Wire Range Ø4.8mm-Ø35mm
Max. Stripping Layers 9 layers
Unit cutting depth 0.01mm
Stripping Length 0.1-~95mm
Display Way Touch screen
Driving Mode Motor and ball screw driving
Stripping Method Rotating blade
Blade 2pcs, Material Imports Switzerland tungsten steel
Locating plate 2pcs, Material Imported high-speed steel
Wire Trapper Self-aligning, Motor driving, Clamping force is controled by program
Productivity 500~700pcs/hour(according to wire length and wire material
Openning way Manual / Sensor/Foot switch
Power Supply 220V/50Hz ,380W
Air source 0.2-0.4MPa
Weight 19kg
Dimension 200mm*720mm*400mm；
Operating Enviroment 0-50℃,moderate dryness,vibrationless workbench
