| Power AC220V/50HZ |
| Function cut,split, full strip, half-strip,single end crimp,singe end twist, single end tinning |
| Productivity 6000-12000 pcs/hour(L=300) |
| Wire size AWG#24-AWG#18,AWG#24-AWG#32(2p/3p/4p) |
| cutting length 10-600mm(min cab be modified as 8mm) |
| Cutting Tolerance: 0.2+0.02*L |
| Stripping length 0mm--7 mm |
| Twisting length 3 mm--7 mm |
| Tinning length 0.5--7mm |
| Air supply 0.5-0.7MPA |
| Dimensions: 1210W*770L*1370H(mm) |
| Weight: 450 kg |

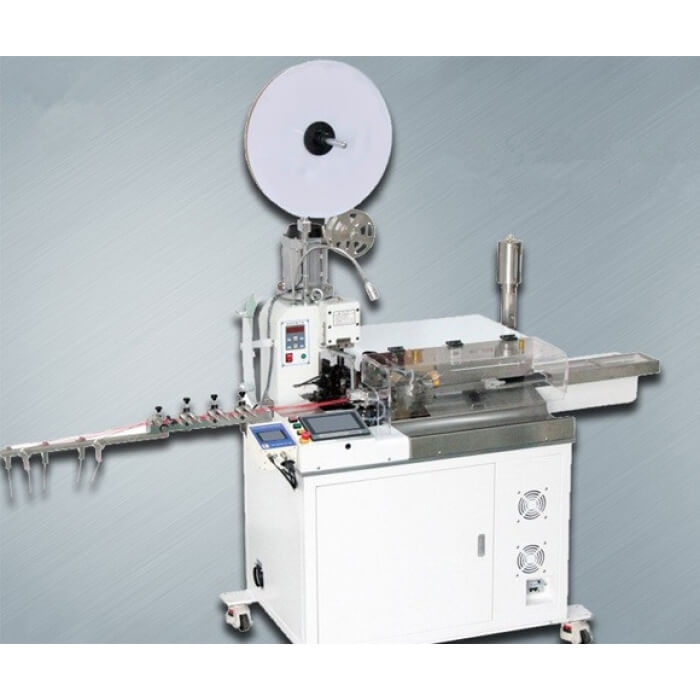

Automatic crimping and tinning machine ACM-02C
|
Power |
AC220V/50HZ |
|
Function |
cut,split, full strip, half-strip,single end crimp,singe end twist, single end tinning |
|
Productivity |
6000-12000 pcs/hour(L=300) |
|
Wire size |
AWG#24-AWG#18,AWG#24-AWG#32(2p/3p/4p) |
|
cutting length |
10-600mm(min cab be modified as 8mm) |
|
Cutting Tolerance: |
0.2+0.02*L |
|
Stripping length |
0mm--7 mm |
|
Twisting length |
3 mm--7 mm |
| Tinning length | 0.5--7mm |
|
Air supply |
0.5-0.7MPA |
|
Dimensions: |
1210W*770L*1370H(mm) |
|
Weight: |
450 kg |
