| Cutting length:1mm-9.9m |
| Stripping length:0.2mm-48mm |
| Cutting Tolerance:±（0.2+0.002*L）mm |
| Wire Range:AWG26-AWG6 |
| Wire material:PVC，TEFLON, Fiberglass Wire |
| Power:AC220V+/-10%,50HZ,0.4kW |
| Air source:0.2-0.4MPa |
| Productivity:85pcs/min （L=100mm, A=B=5mm,AWG16） |
| Dimensions:570mm*450mm*340mm |
| Weight:50kg |

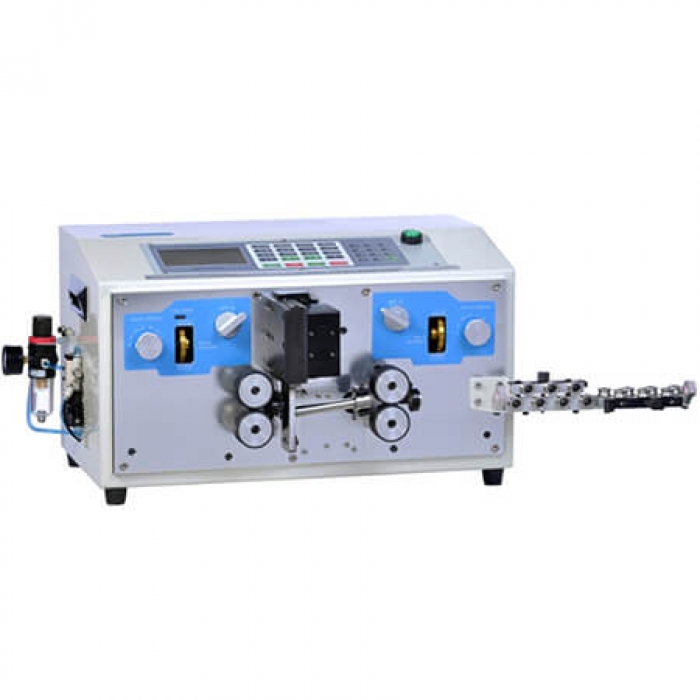

Cable cut and strip machine CSC-1050
Features:
With the widest wire range 0.13-10mm²（AWG26-6),also named universal model.
This model could meet process requirement in automobile area and home appliance wire harness.
| Specifications: | |
| Cutting length: | 1mm-9.9m |
| Stripping length: | 0.2mm-48mm |
| Cutting Tolerance: | ±（0.2+0.002*L）mm |
| Wire Range: | AWG26-AWG6 |
| Wire material: | PVC，TEFLON, Fiberglass Wire |
| Power: | AC220V+/-10%,50HZ,0.4kW |
| Air source: | 0.2-0.4MPa |
| Productivity: | 85pcs/min （L=100mm, A=B=5mm,AWG16） |
| Dimensions: | 570mm*450mm*340mm |
| Weight: | 50kg |
| Delivery Information: | |
| Package: | 50kg |
| Dimension: | 715mm*625mm*445mm (0.17 cdm) |
| Net Weight: | 50kg |
| Gross Weight: | 53kg |
| Port of Loading: | China |
| Production Cycle: | 7 working days |
| Transport time: | 5 days to EL PASO by air |
