Cutting length:0.5mm-9.9m |
Stripping length:0.2-40 mm |
Cutting Tolerance:±(0.2+0.002*L)mm |
Wire Range:AWG12~AWG28 |
Wire material:PVC,TEFLON |
Power:AC220V+/-10%,50/60HZ,350W |
Air source:0 |
Productivity:140pcs/min (L=100mm, A=B=5mm,2XAWG16) |
Dimensions:430mm*455mm*295mm |
Weight:34kg |

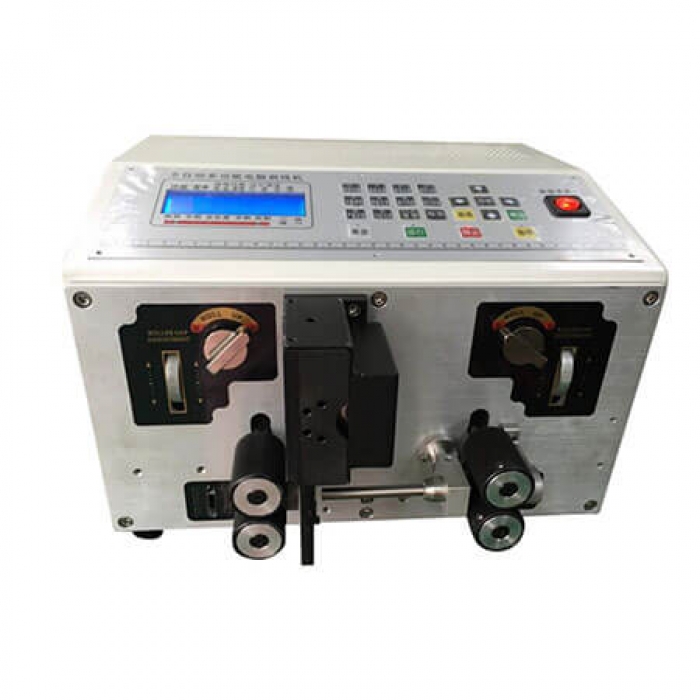

Double wire cutting and stripping machine CSC-2020
Cable cut and strip machine CSC-2020
Also named automatic cutting tool machine,striped wire machine
Features:
Function same as CSC-1030, and with higher-efficiency by processing double wires at a go.
Specifications: | |
Cutting length: | 0.5mm-9.9m |
Stripping length: | 0.2-40 mm |
Cutting Tolerance: | ±(0.2+0.002*L)mm |
Wire Range: | AWG12~AWG28 |
Wire material: | PVC,TEFLON |
Power: | AC220V+/-10%,50/60HZ,350W |
Air source: | 0 |
Productivity: | 140pcs/min (L=100mm, A=B=5mm,2XAWG16) |
Dimensions: | 430mm*455mm*295mm |
Weight: | 34kg |
Delivery Information: | |
Package: | 34kg |
Dimension: | 605mm*625mm*445mm (0.17 cdm) |
Net Weight: | 34kg |
Gross Weight: | 38kg |
Port of Loading: | China |
Production Cycle: | 7 working days |
Transport time: | 5 days to EL PASO by air |
