| Cutting length:0.5mm-9.9m |
| Stripping length:0.2-40 mm |
| Cutting Tolerance:±（0.2+0.002*L）mm |
| Wire Range:AWG12～AWG28 |
| Wire material:PVC，TEFLON |
| Power:AC220V+/-10%,50/60HZ,350W |
| Productivity:80pcs/min （L=100mm, A=B=5mm,AWG16） |
| Dimensions:430mm*455mm*295mm |
| Weight:34kg |

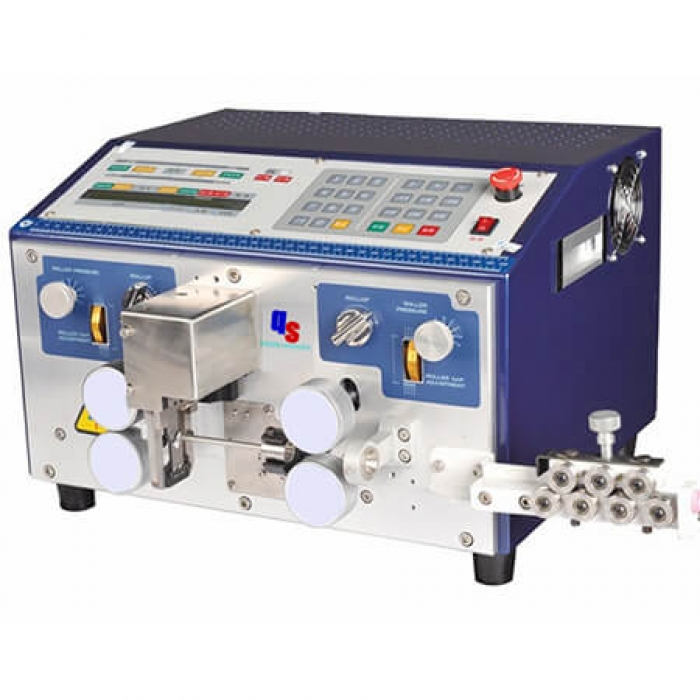

Cable cutting and stripping machine CSC-1030
Also named wire cutter machine, cable peeling machine
Features:
Best wire cutting and stripping model at home and abroad, the first choice for small automobile and home appliance wire harness.
Wide processing range: AWG12～AWG28.
Rich processing mode: long-wire stripping, short-wire stripping, mid stripping, double-covered wire stripping.
Support for various function expansion such as multi-point interspacing function, splitting function, twisting function.
| Specifications: | |
| Cutting length: | 0.5mm-9.9m |
| Stripping length: | 0.2-40 mm |
| Cutting Tolerance: | ±（0.2+0.002*L）mm |
| Wire Range: | AWG12～AWG28 |
| Wire material: | PVC，TEFLON |
| Power: | AC220V+/-10%,50/60HZ,350W |
| Air source: | 0 |
| Productivity: | 80pcs/min （L=100mm, A=B=5mm,AWG16） |
| Dimensions: | 430mm*455mm*295mm |
| Weight: | 34kg |
| Delivery Information: | |
| Package: | 34kg |
| Dimension: | 605mm*625mm*445mm (0.17 cdm) |
| Net Weight: | 34kg |
| Gross Weight: | 38kg |
| Port of Loading: | China |
| Production Cycle: | 7 working days |
| Transport time: | 5 days to EL PASO by air |
