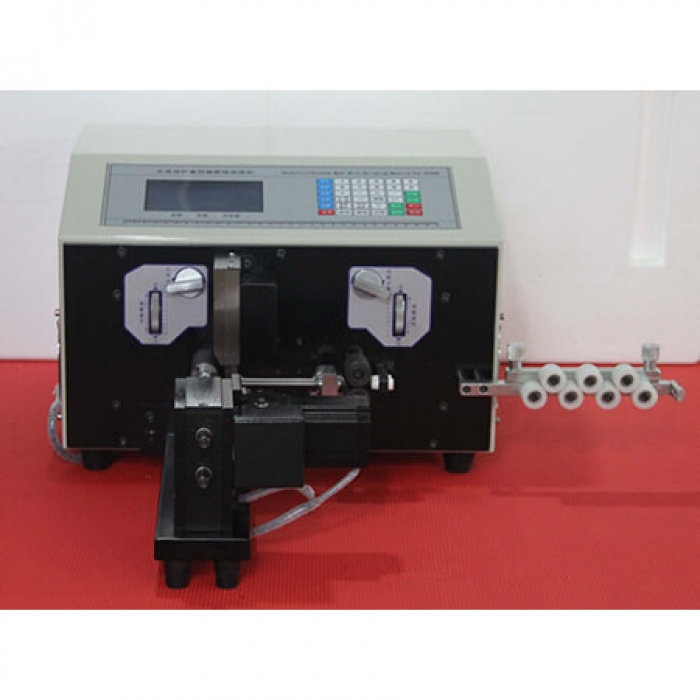

Digital cut strip twist machine CSC-508NX
Features
This model can strip cut and twist wire full automatically, especially suitable for multi-core soft wires!
Appropriate Wire suitable for Strand wires, coaxial cables, etc.
Specifications
Wire Range 0.1 - 1.5 mm² (AWG13 ~ AWG32)
Max Conduit Diameter Φ6mm
Max width 20mm
Cutting length 5 ~ 99999mm
Stripping length front end Head 0~35mm, End 0~20mm
Cutting tolerance ±(0.002*L)mm
Power AC220V+/-10%,50/60HZ
Air source 0.4-0.7Mpa
Blade Material Hard tungsten steel
Drive Mode Four wheel drives
Productivity 5000~15000pcs/hour
Weight 48kg
