| Wire Range Ø3mm-Ø25mm |
| Max. Stripping Layers 9 layers |
| Unit cutting depth 0.01mm |
| Stripping Length 0.5~150mm |
| Display Way Touch screen |
| Driving Mode Motor and ball screw driving |
| Stripping Method Rotating blade |
| Blade 2pcs, Material Imports Switzerland tungsten steel |
| Locating plate 2pcs, Material Imported high-speed steel |
| Wire Trapper Self-aligning, Motor driving, Clamping force is controled by program |
| Productivity 500~700pcs/hour(according to wire length and wire material |
| Openning way Manual / Sensor/Foot switch |
| Power Supply 220V/50Hz ,630W |
| Weight 55kg |
| Dimension 920*220*400mm； |

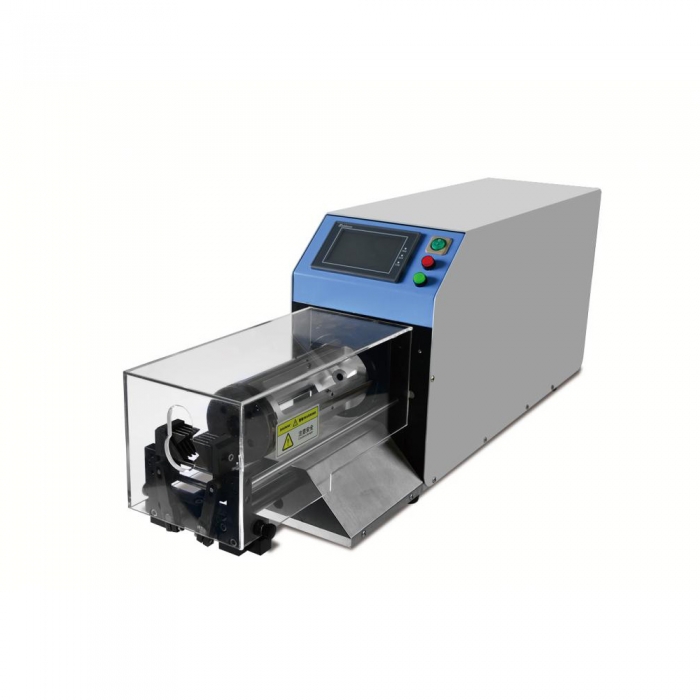

Electric Cable Stripping Machine TZB-2515
Features
1. Applicable to the Strippling of various flexible and semi-flexible coaxial cables, charging pile cables, medical wires, etc. in the communication industry and medical automobile industry, with neat stripping and precision without damaging the conductor;
2. Human-machine interface, easy to understand operation, can peel up to 9 layers, can store up to 99 kinds of processing data;
3. Rotary cutter head, four-piece rotary cutter design and exquisite structure improve the stability of stripping and the working life of the cutter;
4. Servo motor, precision ball screw and multi-point motion control system are adopted for stable and efficient performance;
5. The cutter adopts imported tungsten steel and titanium alloy coating, which is sharp and durable;
6. It can meet the special requirements of multi-layer peeling, multi-stage peeling and automatic continuous start;
7. Continuous innovation has been carried out on the original models, with more optimized functions and structures and more powerful performance.
b. strip 35 sqmm cable,
