| Available Wire Size 0.1 - 2.5mm² (AWG14 - AWG32) |
| Conduit Diameter Φ6mm |
| Cutting Length 5 - 9999mm |
| Stripping Length Head 0 - 35mm, Tail 0 - 15mm |
| Memory Function Can store Max. 99 programs |
| Max. Middle Stripping Section 11 |
| Cutting Tolerance ±(0.002×L) (L = Cutting Length) |
| Speed 3000 - 7000pcs/hour |
| Display LCD display with english menu |
| Blade Material Hard tungsten steel |
| Power Supply 220V/50Hz 110V/60Hz |
| Power Rating 180W |
| Weight 30Kg |
| Dimension 390 × 350 × 255mm |

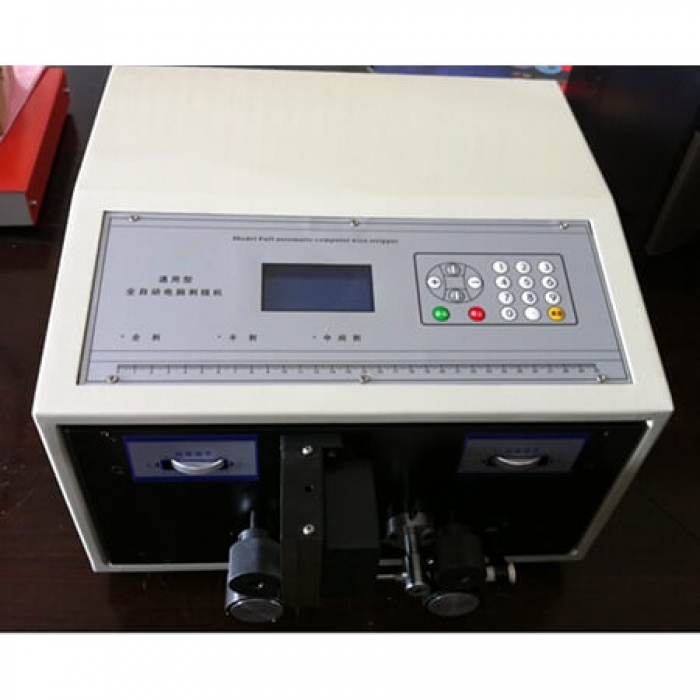

Wire Stripping Cutting Machine CSC-508C
Features
This wire stripping and cutting machine presents an excellent price/performance ratio, high output rate thanks to high cutting rate and transport speed.
It is the ideal solution for processing small multi strand wires with a cross section of Max. 2.5mm².
Specifications
Available Wire Size 0.1 - 2.5mm² (AWG14 - AWG32)
Conduit Diameter Φ6mm
Cutting Length 5 - 9999mm
Stripping Length Head 0 - 35mm, Tail 0 - 15mm
Memory Function Can store Max. 99 programs
Max. Middle Stripping Section 11
Cutting Tolerance ±(0.002×L) (L = Cutting Length)
Speed 3000 - 7000pcs/hour
Display LCD display with english menu
Blade Material Hard tungsten steel
Power Supply 220V/50Hz 110V/60Hz
Power Rating 180W
Weight 30Kg
Dimension 390 × 350 × 255mm
