| Cutting length:1mm-9.9mm |
| Stripping length:0.2mm-30mm |
| Cutting Tolerance:±（0.2+0.002*L）mm |
| Wire Range:6-60 mm²(D.O.11-17mm) |
| Wire material:Four-wheel drive, independent drive box driver |
| Power:AC220V+/-10%,50/60HZ,300W |
| Air source:0.2-0.4MPa |
| Productivity:600pcs/hour （L=100mm, A=B=3mm） |
| Dimensions:620mm*370mm*420mm |
| Weight:57kg |

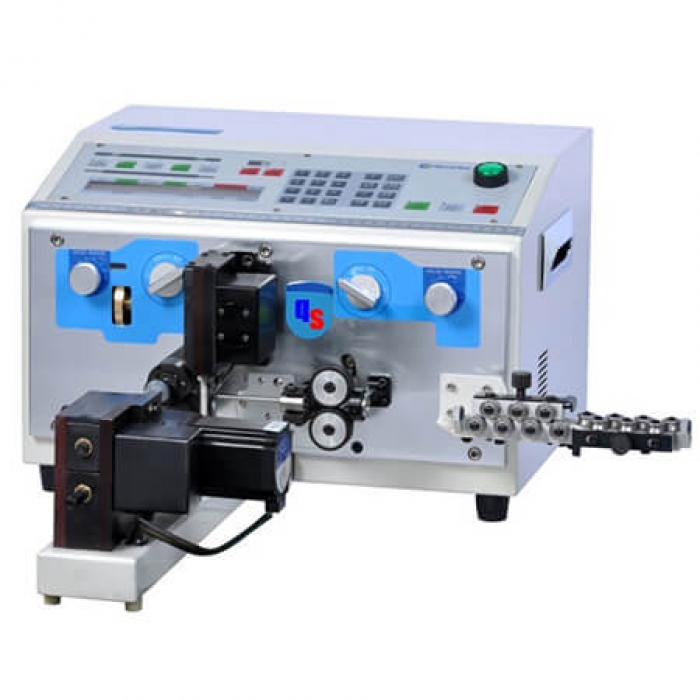

Wire stripping and twisting machine CSC-130TD
twisting wire,cutting the wire,cut wire,wire cut,cutter power
Also named wire stripping and twisting machine,wire twisting machine,cable twisting machine
Features:
High-efficiency by processing double wires at a go.
With twisting function.
| Specifications: | |
| Cutting length: | 1mm-9.9mm |
| Stripping length: | 0.2mm-30mm |
| Cutting Tolerance: | ±（0.2+0.002*L）mm |
| Wire Range: | 6-60 mm²(D.O.11-17mm) |
| Wire material: | Four-wheel drive, independent drive box driver |
| Power: | AC220V+/-10%,50/60HZ,300W |
| Air source: | 0.2-0.4MPa |
| Productivity: | 600pcs/hour （L=100mm, A=B=3mm） |
| Dimensions: | 620mm*370mm*420mm |
| Weight: | 57kg |
|
|
|
