| Dimensions L620*W450*H330 |
| Weight 30KG |
| Display Chinese interface LCD display or English interface |
| Power 220V／450W |
| Cutting Length 0.5mm-99999.99mm |
| Stripping Length front end 1-300mm, rear end 1-200mm |
| Intermediate stripping and cutting Intermediate cut at fifteen point |
| wire range 0.3-10mm²(O.D<11mm) |
| Wire Material flat ribbon BVVB, coaxial wire,pvc,teflon wire |
| Cutting tolerance Within 0.002 x L |
| Max. wire diam 1-12mm |
| Driving way Four-wheel drive, independent drive box driver |
| Productivity(pcs／m) 70pcs/m |

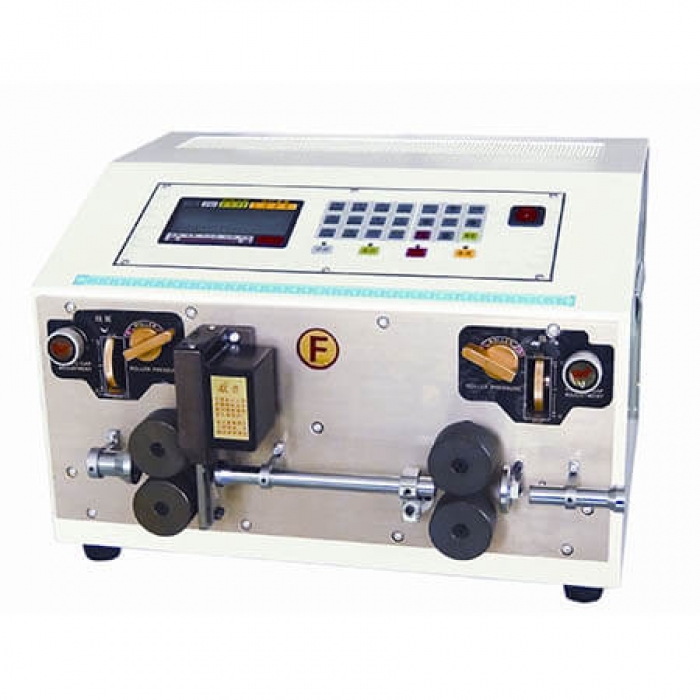

Cut wire and stripping tools machine CSC-515F2
Also named cut wire machine and stripping tools machine,cut wireand stripping tools device,cut wire and stripping tools equipment,cut wire and stripping tools device.
Apply for BV, BVVB , BVV, RVV, VVR, RVVP, SYV, BLVV.
Longer stripping length.
With lifting roller function which enables to split wire jacket automatically.
With Multi-layer stripping for flat ribbon BVVB, coaxial wire.
|
Dimensions |
L620*W450*H330 |
|
Weight |
30KG |
|
Display |
Chinese interface LCD display or English interface |
|
Power |
220V／450W |
|
Cutting Length |
0.5mm-99999.99mm |
|
Stripping Length |
front end 1-300mm, rear end 1-200mm |
|
Intermediate stripping and cutting |
Intermediate cut at fifteen point |
|
wire range |
0.3-10mm²(O.D<11mm) |
|
Wire Material |
flat ribbon BVVB, coaxial wire,pvc,teflon wire |
|
Cutting tolerance |
Within 0.002 x L |
|
Max. wire diam |
1-12mm |
|
Driving way |
Four-wheel drive, independent drive box driver |
|
Productivity(pcs／m) |
70pcs/m |
