| Cutting length 40-9999mm |
| Stripping length 0.1mm-9mm |
| Half stripping 3.0mm-9mm |
| Cutting Tolerance ±（0.2+0.002*L）mm |
| Wire Range AWG18～AWG28 |
| Wire material PVC，PE |
| Power AC220V+/-10%,50/60HZ |
| Crimping force 2*2.0 T |
| Air source 0.5-0.7Mpa |
| Productivity 3600pcs/hour （L=200mm） |
| Dimensions 1000mm*700mm*1550mm |
| Net Weight 460kg |

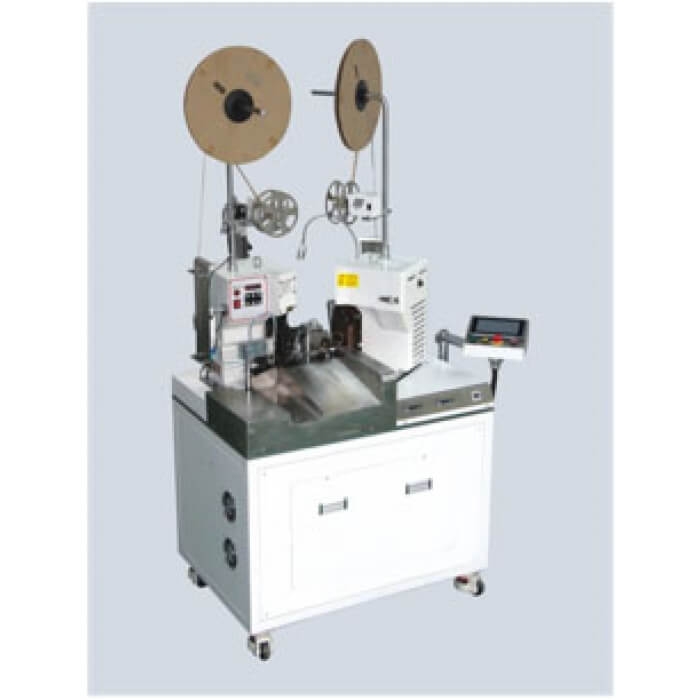

Fully automatic terminal crimping machine both side ACM-01
Features:
The automatic crimping machine is designed for the process of both side stripping & crimping.
It comprises wide applications capable to fit vertical and horizontal crimping dies of any brands.
It supports many optional devices such as conveyor belt, wire feeding unit, vibration plate etc.
