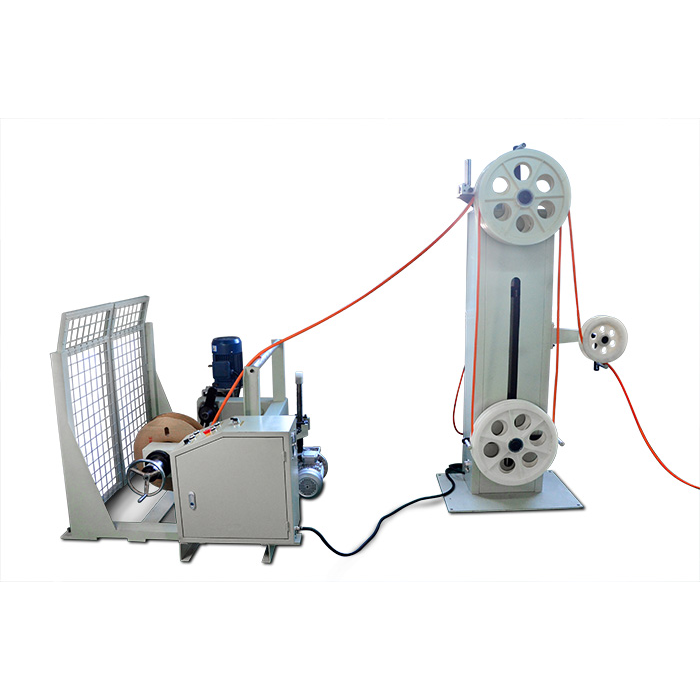

| Model | QSFX-F1500 |
| Pay-off tension | Mechanical pendulum structure |
| Move the weight to adjust the pay-off tension | |
| Applicable wire diameter | 3-45mm |
| Pay-off reel specifications | Outer diameter: 700-1500mm |
| Outer width: 550-900mm | |
| Pay-off speed | 150m / min |
| Weight capacity | 2.5T |
| Main power | 7.5KW |
| Total weight | About 800kg |
| Power supply | AC380V50 / 60HZ |
| Remarks: (Customers need to provide specific wire reel dimensions (outer diameter, outer width, shaft hole diameter) for the design of our engineering department) | |
