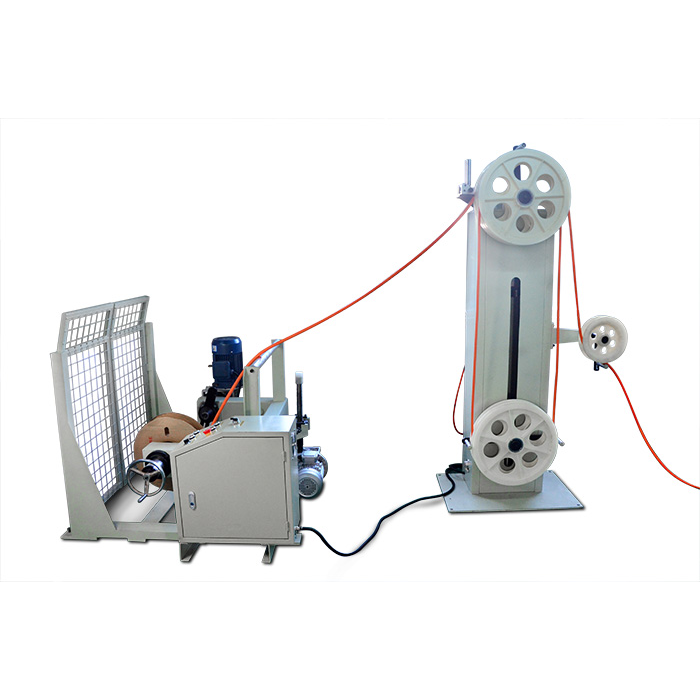

| Model | QSFX-F800 |
| Pay-off tension | Pulley type pay-off |
| Inverter controls pay-off speed | |
| Applicable wire diameter | 3-20mm |
| Pay-off reel specifications | Outer diameter: 500-800mm |
| Outer width: 300-600mm | |
| Pay-off speed | 250m / min |
| Weight capacity | 1.5T |
| Main power | 4KW |
| Total weight | About 500kg |
| Power supply | AC380V50 / 60HZ |
| Remarks: (Customers need to provide specific wire reel dimensions (outer diameter, outer width, shaft hole diameter) for the design of our engineering department) | |
